ITM 45

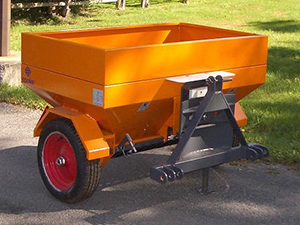

Epoke ITM 45 road speed related towed spreader
with the following standard features and included options:
- Standard rubber base
- Spring base and spring base adjustment
- Pneumatic wheels
- Transmission without reduction
- Agitator
- Delivery roller with 3 mm cam
Drawbar Options:
One of the following draw systems should be chosen
- Reversible drawbar with trailer ball coupler and 38 mm (1.5") eye
- Reversible drawbar with trailer ball coupler and 50 mm (2.0") eye
- Lift truck fitting with support legs
Options (available as kits for Dealer install):
- Lights
- Electric remote control
- Electric remote control and lights
- Support leg
- 250L (66 gal)hopper extension
TECHNICAL DATA: |
Metric |
Imperial |
|
||
Capacity | 450 litres | 5/8 cubic yard |
|
||
Total Width | 1435 mm | 56.5 inches |
|
||
Track Gauge | 1290 mm | 51 inches |
|
||
Spreading Width | 1010 mm | 40 inches |
|
||
Weight | 129 kg | 423 lbs. |
|
||
Linear Working Range (Salt) @ typical application rates | 27 km | 16.8 miles |
|
